Eikon EKJMA Handheld Wireless System
Eikon EKJMA Handheld Wireless System
Regular price
$159.00 AUD
Regular price
Sale price
$159.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The EKJ&M is a UHF quartz locked controlled Wireless Microphone System providing a reliable and high quality signal transmission.

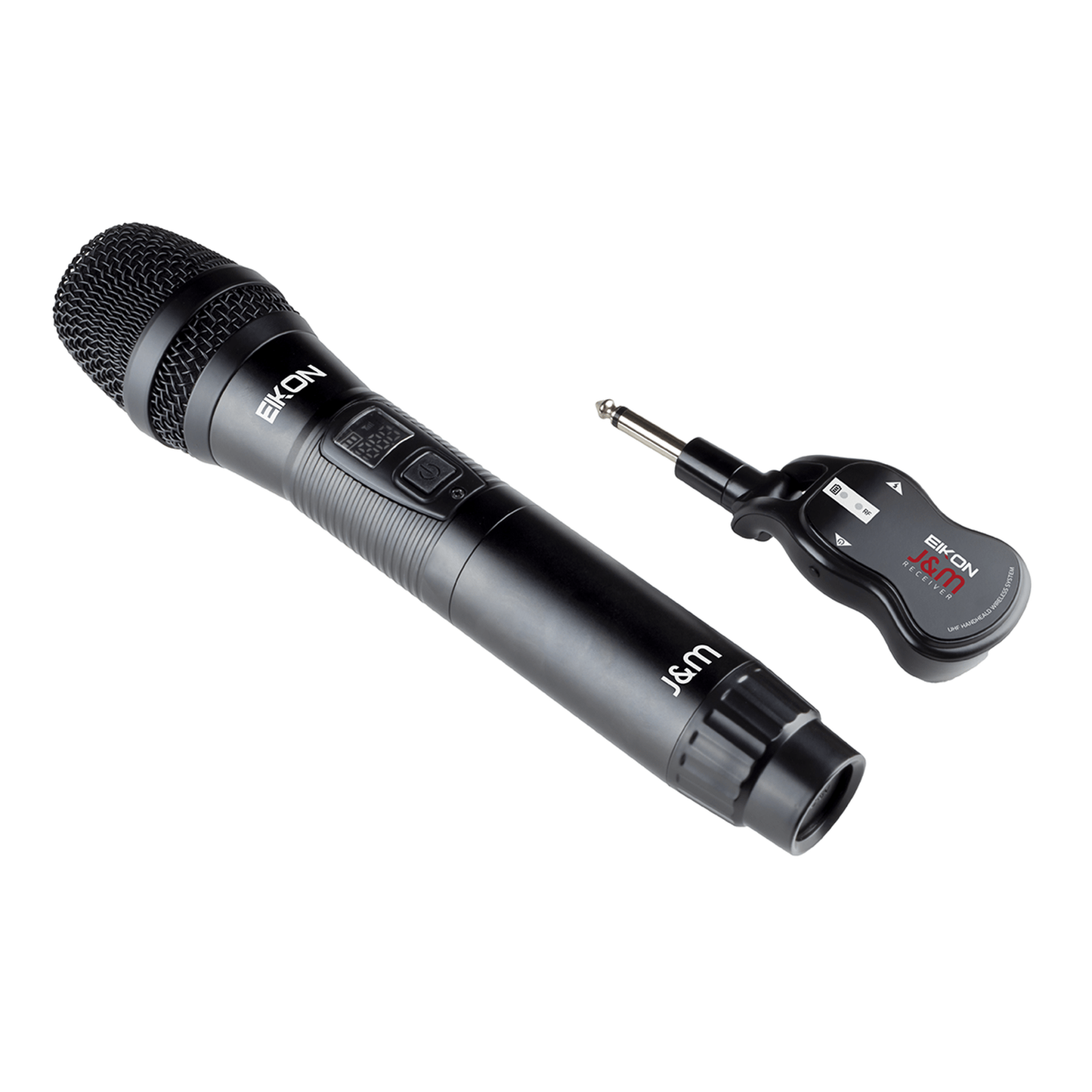

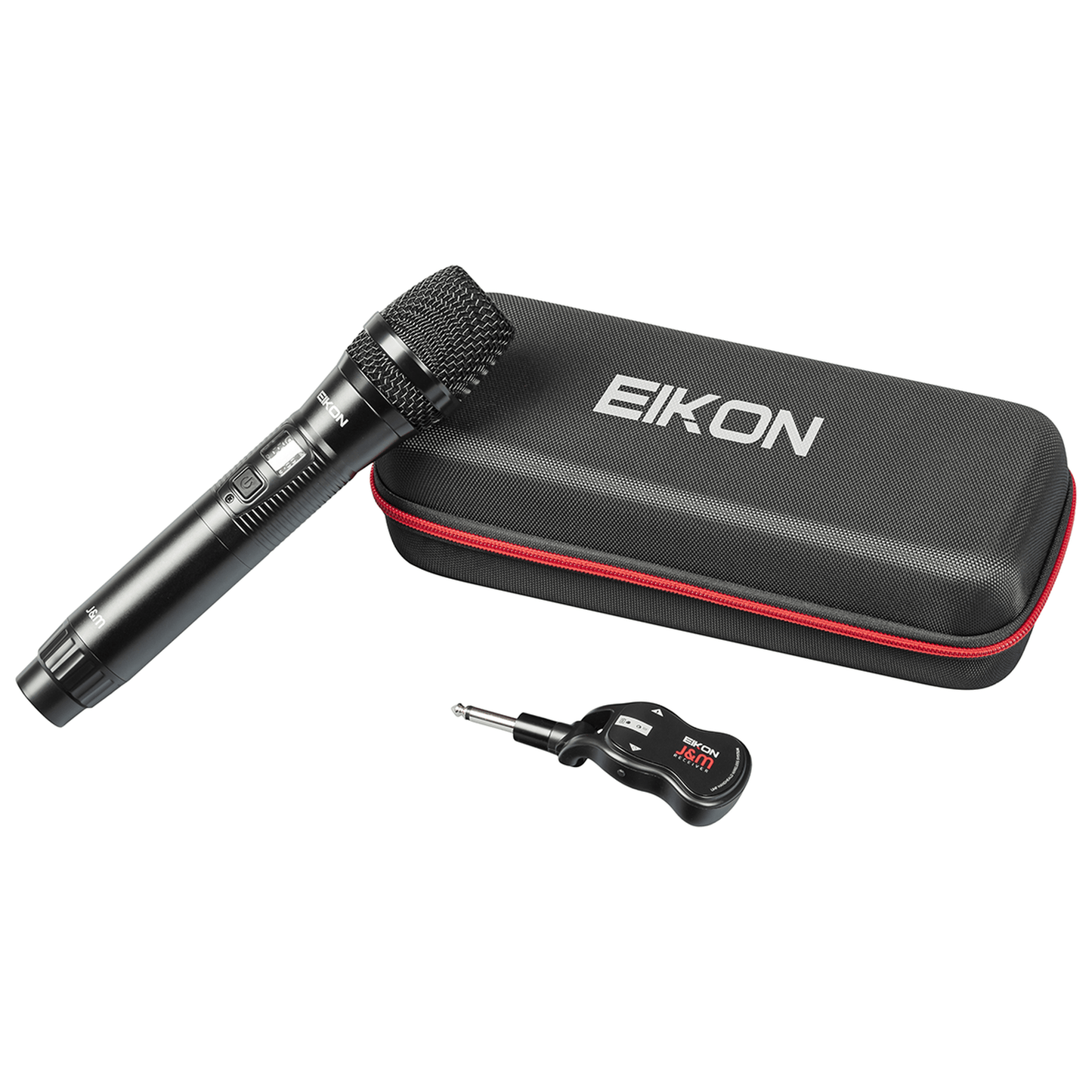

EKJ&M features 3 units: EKJ&M Handheld transmitter, EKJ&M compact “connector sized” receiver and USB to USB-C charging cable.
50 channels frequencies are available, allowing the possibility to use the apparatus with other wireless equipment.
- UHF 512 – 541,7 MHz frequency band
- Quartz locked modulation mode
- Up to 30 meters range
- Built in 3.7V/500mA lithium battery
- 5V USB charging cable included
- Up to 5 hours autonomy
- Up to 6 systems usable in the same location
TECHNICAL SPECIFICATIONS
EKJ&JA - UHF PLL 50 Channel Transmitter
| RF Channels | 50 frequency presets |
| RF Frequency Band | UHF: 512 - 541.7 MHz |
| RF Frequency Stability | ±0.002% |
| RF Oscillation Mode | Quartz locked |
| RF Modulation Type | Wideband FM Stereo |
| RF Output Power | 10mW |
| Sub-harmonic | < 40 dB |
| Operating current | 130 mA |
| Operating Time | 5 to 8 hours |
| Operating Power Supply | 3.7 V / 500mA - built-in Lithium battery |
| Charging mode | USB charging 5V - type C connector |
| Charging time | 5 hours |
| Weight | 0.30 Kg |
